Egg Lifter & Loader

Vacuum egg lifter 602

Features & Benefits

2024 New Generation Design
High-Performance Vacuum Lifting System
Quick Installation & User-Friendly Operation
Flexible & Adjustable Suction Cup Configuration
Space-Saving Compact Structure
Excellent Equipment Compatibility

MODEL	Voltage	Power	Material	Dimension	Net Wight	Gross Weight	Function
ZYS-ZK-30	220V, 50HZ, Single phase	0.55KW	Stainless steel	330312400mm	35KG	60KG	Vacuum egg lifting & loading

604A Accumulator

Features:

Space-Saving Compact Construction
High-Efficiency Egg Loading
Precision Line Division & Smooth Transfer
Optimized Washer-to-Grader Transition
Labor-Saving & High-Throughput Performance

MODEL	Voltage	Power	Material	Dimension	Net Wight	Gross Weight	Function
ZYS-D32/80	220V, 50HZ, Single phase	90W	Stainless steel	0.910.42 1.0 M	40KG	70KG	Accumulator & transition and optional vacuum egg lifter

604B Conveyor

Features:

Product Configuration
Seamless Machine Integration
Efficient Egg Line Division
Dual Accumulator & Bridge Function
Integrated UV Sanitization System
Improved Production Line Efficiency

MODEL	Material	Product Code	Power	Voltage	Dimension	Net Wight	Gross Weight	Function
ZYS-P30/150	Carbon steel	604B	138W	220V, 50HZ, Single phase	1.50.381.3M	45KG	75KG	Belt conveyor &UV & Transition

605A Accumulator

Features:

Material & Construction
Standard Configuration
Efficient Vacuum Loading
LED Egg Candling Function
Egg Orienting & Conveying
Speed Adjustable Control
Recommended Matching Equipment

MODEL	Voltage	Power	Material	Dimension	Net Wight	Gross Weight	Function
ZYS-DS60/300	220V, 50HZ, Single phase	728W	Stainless steel	3.031.282.0 M	250KG	350KG	Roller conveyor & candling & orientator and optional vacuum egg lifter

605G Accumulator

Features & Benefits:

Durable Stainless Steel Construction
Guided Silicon Roller Design
Efficient Vacuum Loading & Orientation
Adjustable Speed Control
Ideal Compatibility、

MODEL	Power	Material	Voltage	Dimension	Net Wight	Gross Weight	Function
ZYS-G60/150	290W	Stainless steel	220V, 50HZ, Single phase	1.771.281.3 M	160KG	250KG	Roller conveyor & orientator, optional vacuum egg lifter

White cup for egg lifter (1501-00019)

Details:

Spare part for the Zenyer 602 vacuum egg lifter head, is white in colour, made of silicon.
It is recommended to have two sets, one to use, the other as an extra when the first needs to be cleaned.

Red cup for egg lifter (1501-00018)

Details:

Spare part for the Zenyer vacuum egg lifter head.
Spare part for other brands of lifter as well (require the drawings or a sample before purchasing).
Red in colour.
It is recommended to have two sets, one to use, the other as an extra when the first needs to be cleaned.

12-egg lifter head kit (600B-12)

Details:

With 12 silicone cups, for transferring 12 eggs per time.
Spare part for the Zenyer egg lifter head, if it ever gets broken
Increase your efficiency, reduce labour costs with Zenyer vacuum egg lifters.

Egg type	Power	Net Wight	Function
For chicken eggs	37.19KW	0.55KG	With 2*6 fixed egg positions, for transferring eggs to 12-egg carton, or transfeering eggs from 12-egg carton to the machine

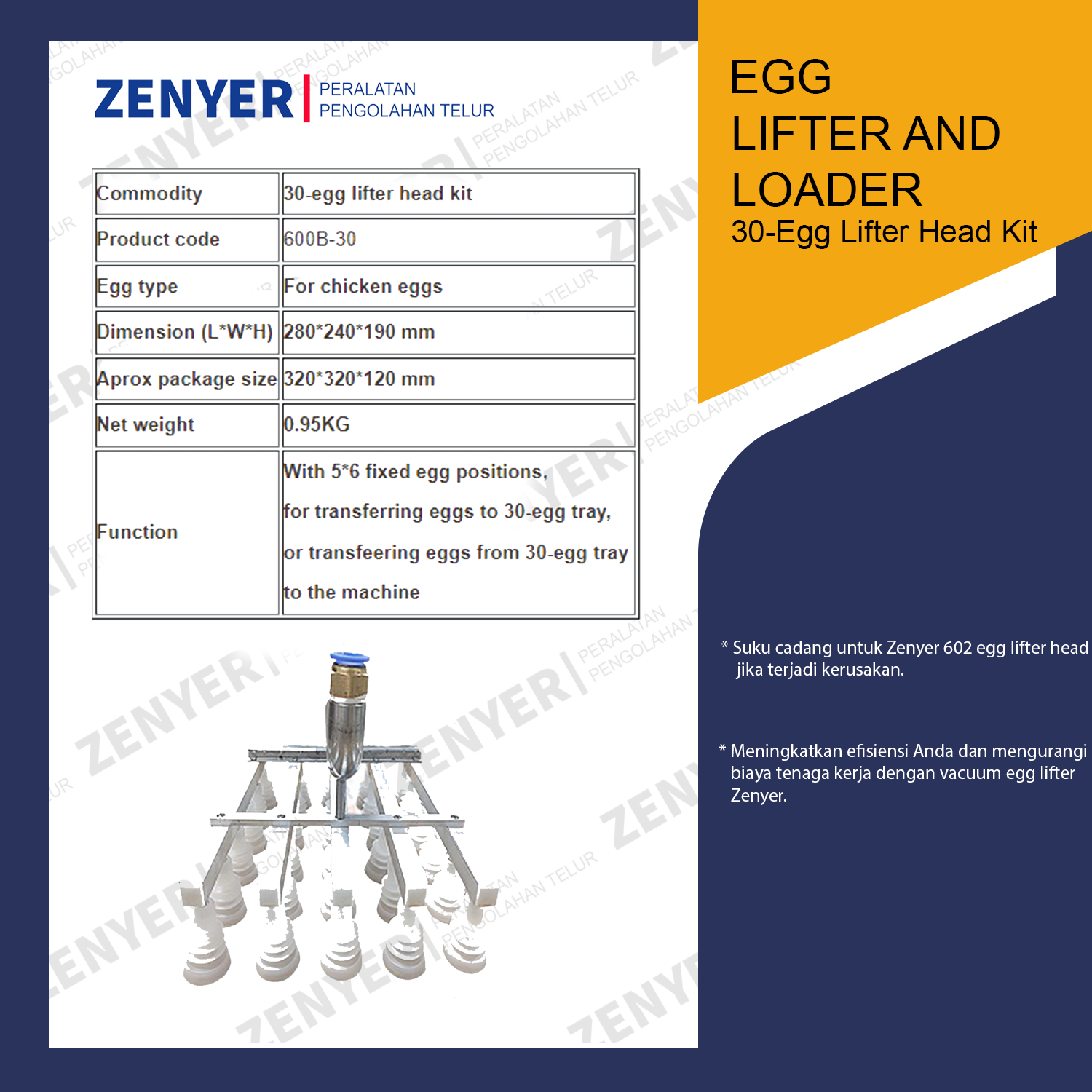

30-egg lifter head kit (600B-30)

Details:

With 30 silicone cups, for transferring 30 eggs per time.
Spare part for the Zenyer 602 egg lifter head, if it ever gets broken.
Increase your efficiency, reduce labour costs with Zenyer vacuum egg lifters.

Product code	Egg type	Aprox package size	Dimension	Net Wight	Function
600B-30	For chicken eggs	320320120 mm	280240190 mm	0.95KG	With 5*6 fixed egg positions, for transferring eggs to 30-egg tray, or transfeering eggs from 30-egg tray to the machine

Egg lifter head Handle only

Details:

Designed as a replacement handle for the older version of the Zenyer 602 Egg Lifter Head.
Perfect for grading and packing rooms where vacuum egg lifters are used extensively.
This product includes the replacement handle only.
Simple to fit and replace, helping to keep your operations running smoothly.
Ensures uninterrupted use of your egg lifter, maintaining productivity and reducing downtime.

604AS Accumulator

Key Features & Advantages:

Efficient Egg Loading
Direct Washer Integration
Optional Conveyor Configuration
Ergonomic & User-Friendly Design
Compact & Space-Saving
Enhanced Production Efficiency

MODEL	Voltage	Power	Material	Dimension	Net Wight	Gross Weight	Function
ZYS-D24/120	220V, 50HZ, Single phase	115W	Stainless steel	1.370.485 1.87 M	60KG	90KG	Accumulator and optional egg lifter

604AF Manual egg tray loading

Features:

Fast, easy, and safe — these are the prominent features of this model of the manual tray loading device.
This tray loading device can be installed on the Zenyer 604A accumulator for egg loading, allowing for the manual loading of 30 eggs at a time.
Operators can simply put a 30-egg tray on the plate and then turn the plate over to allow the eggs to flow into the accumulator (watch video above for reference).
There is no need for extra electrical power in order to operate the manual tray loading device.

MODEL	Voltage	Power	Material	Dimension	Net Wight	Gross Weight	Function
ZYS-DF32/80	220V, 50HZ, Single phase	90W	Stainless steel	1.280.42 1.0 M	45KG	80KG	Accumulator & Tray loading

615 Automatic Egg Loader

Features:

Complete Automatic Egg Loading Solution
Efficient Tray & Egg Handling
Automatic Empty Tray Nesting
Stuck Egg Detection System
User-Friendly Control System
Gentle & Versatile Operation
Higher Efficiency & Lower Labor Costs
Remote Monitoring & Diagnostics (Wi-Fi Enabled PLC Control)

MODEL	Voltage	Power	Material	Dimension	Net Wight	Gross Weight	Function
ZYS-ZK-J30	380V, 50HZ, 3-phase	6.71KW	Stainless steel	4.482.332 M	640KG	920KG	Stacks of tray loading, rotating plate synchronized positioning, single tray conveying, automatic egg loading and empty tray nesting

605AS Accumulator

Key Features & Advantages:

Integrated Egg Accumulating & Orienting System
Efficient Vacuum Loading
Candling for Quality Control
Smooth Orientation & Transfer
Adjustable Speed Control
Ideal Compatibility

MODEL	Voltage	Power	Material	Dimension	Net Wight	Gross Weight	Function
ZYS-G52/300	220V, 50HZ, Single phase	594W	Stainless steel	3.21.12.0 M	250KG	350KG	Belt & roller conveyor & candling & orientator and optional vacuum egg lifter

615A Automatic egg loader

Key Features & Advantages:

Dual-Head High-Speed Loading & Large Capacity
All-In-One Integrated Loading System
Efficient Tray & Egg Transfer
Intelligent Automatic Empty Tray Nesting
Stuck Egg Monitoring & Anti-Loss System
Intuitive & Easy-to-Operate Control Panel
Gentle Handling & Wide Compatibility
Labor Savings & Operational Efficiency Boost
Wi-Fi Enabled Remote Monitoring & Troubleshooting

MODEL	Voltage	Power	Material	Dimension	Net Wight	Gross Weight	Function
ZYS-ZK-2J30	380V, 50HZ, 3-phase	7.41KW	Stainless steel	4.482.332 M	660KG	940KG	Stacks of tray loading, rotating plate synchronized positioning, single tray conveying, automatic egg loading and empty tray nesting

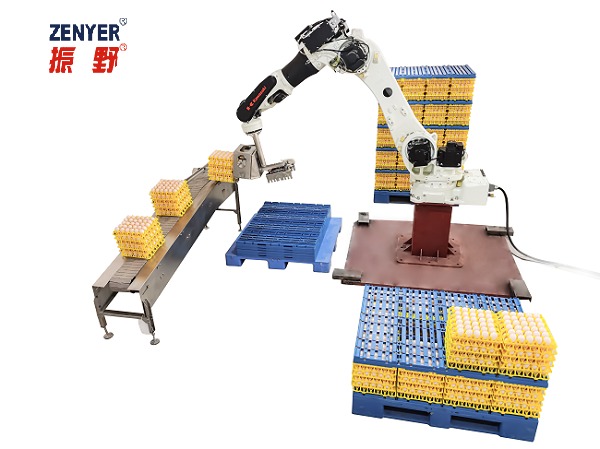

616 Robot palletizer

Key Features & Advantages:

Automated Egg Tray Palletizing Solution
Smooth System Compatibility
High-Performance Robotic Arm
Wide Compatibility for Trays & Pallets
Reduce Labor Input & Operational Efficiency
Create a safer working environment

Capacity	Voltage	Power	Layers on pallet	Loading position	Net Wight	Working radius	Working height	Empty pallet placement	Empty divider placement	Pick-up capacity
30,000 eggs/hour	380V, 50HZ, 3-phase	7.5KW	5 layers	2	1110KG	2600 mm	0-3500 mm	Manual	Automatic	One stack of 6 trays

ZYS-DT-30 Robotic Stacker (617)

Key Features & Advantages:

Automated Tray Stacking Solution
System Configuration
High-Efficiency Processing Capacity
Core Advantages
Recommended Application Scenarios

Model	Capacity	Power	Voltage	Air compressor	Control panel	Design purpose	Function
ZYS-DT-30	1,000 trays/hour 30,000 eggs/hour	2.88KW (Exclude air compressor)	220V,50HZ,Single phase / 380V, 50HZ, 3-phase	3KW (recommended)	HIM touchscreen	Designed to integrate seamlessly with egg farm packer	Robotic stacking 6 egg trays into a uniform stack

ZYS-SD-30 Robotic Loader (618)

Key Features & Advantages:

High-Capacity Automatic Egg Loading
Complete System Configuration
Space-Saving Compact Design
Improved Efficiency & Lower Labor Costs
Simple & Intelligent Operation
Smart Identification

Model	Capacity	Power	Voltage	Air compressor	Function
ZYS-SD-30	24,000 eggs/hour	2.126KW (Exclude air compressor)	220V,50HZ,Single phase / 380V, 50HZ, 3-phase	3KW (recommended)	Robotic loading 30 eggs per time onto the belt conveyor, automatic egg loading and empty tray nesting.
